Latest project LVGL touch display

I have purchased a few of these and programmed them with ESPhome to replace some of the light switches in our house. Luckily most of the light switches have a neutral wire which is essential with these.

In our dining room there are 10 gu10 zigbee spots around the outside plus 3 spots above thee table with a set of 10 starlight lights with an LED strip around the edge run from a WLED controller. All these lights are controller via 2 of these touch displays, one by each door. I have included swipe actions, left and right to change Home Assistant scenes, swipe down to turn on centre lights and swipe up to turn off all lights.

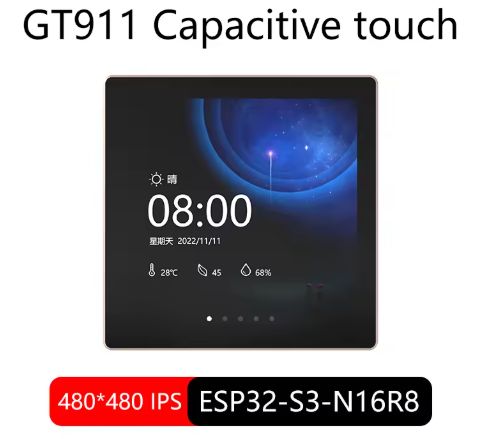

ESP32-S3 Arduino LVGL WIFI&Bluetooth Development Board 4.0 “480 * 480 Smart Display 4.0 inch LCD TFT Module Capacitive Touch

The ESPhome code is shared on my GitHub page.
